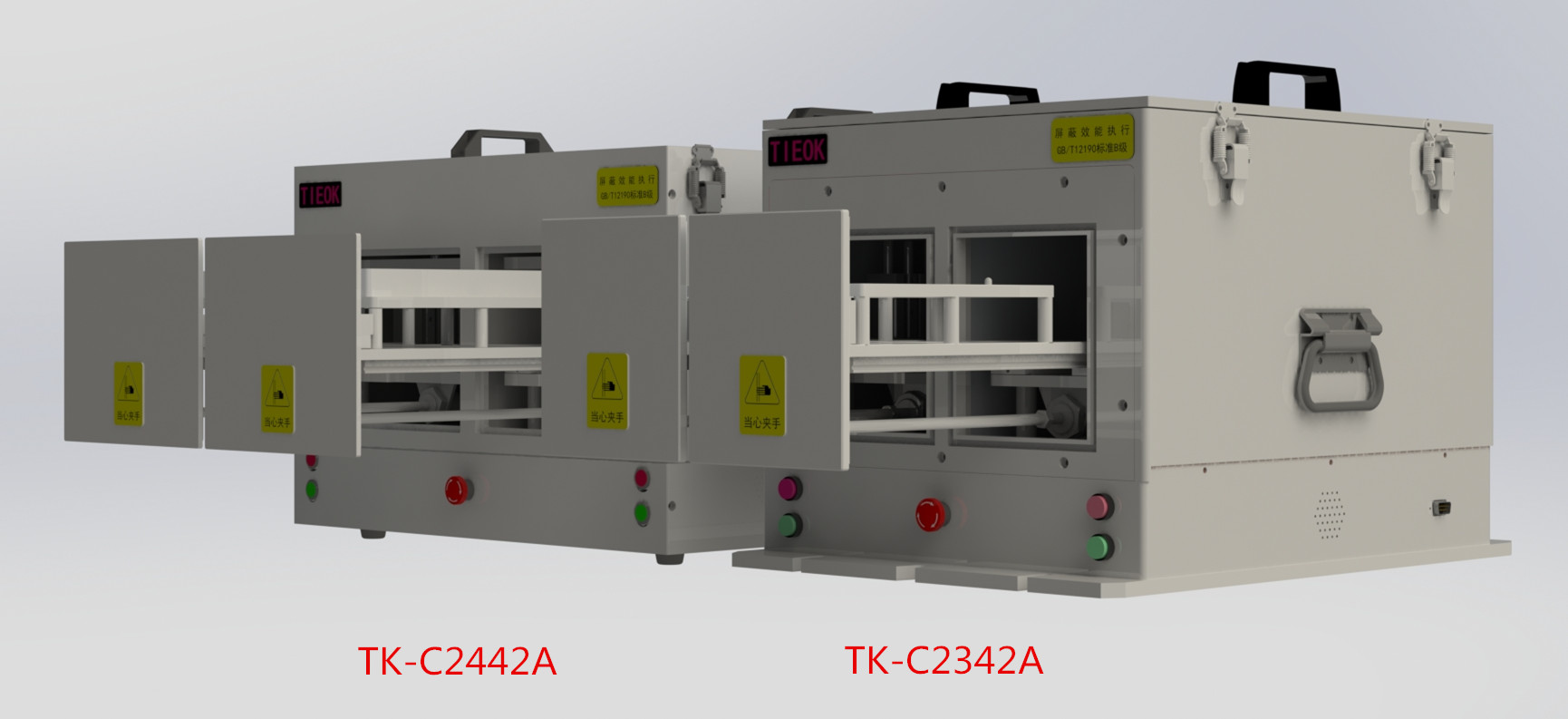

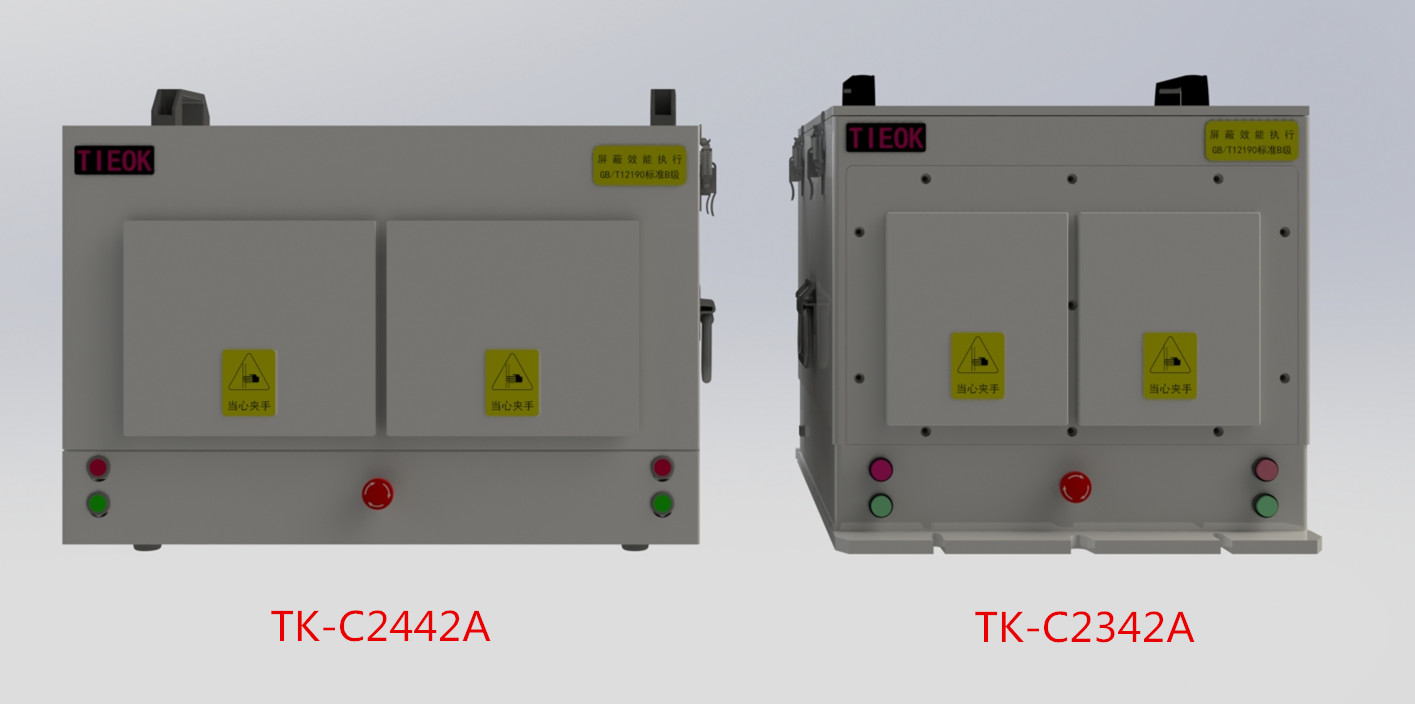

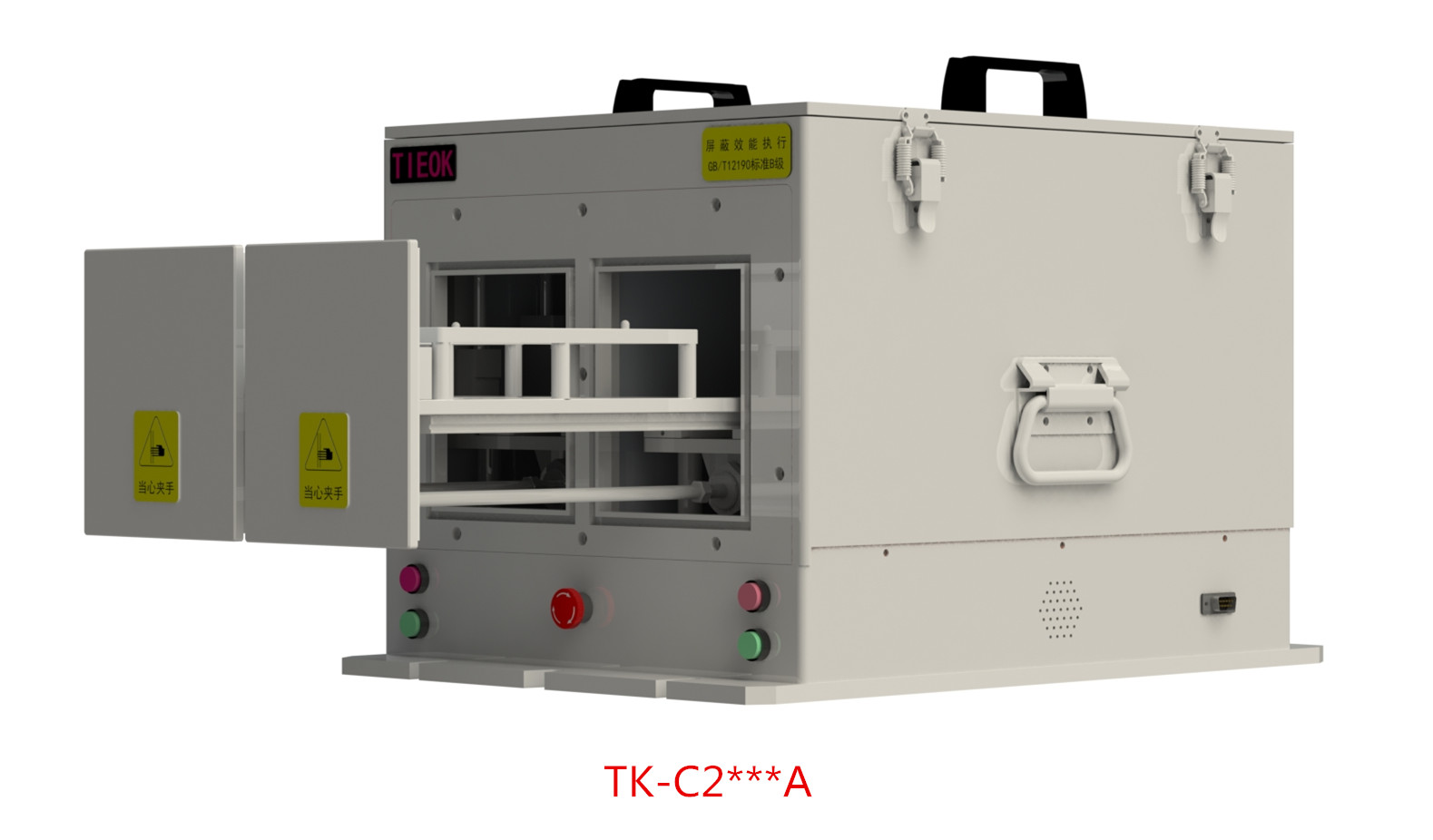

名称: Automatic drawer type shielding cabinet with two doors
型号: TK-C2342A、TK-C2442A
分类: RF电磁屏蔽箱
详细介绍




Model

Dimension

W*D*H

Box dimension

W*D*H

Shielding effectivenessdB)

By GB/T12190 standard

Function application

TK-C2342A

120*230*100 mm

360*435*330 mm

Magnetic field

10KHz40dB

100KHz70dB

Plane wave

30MHz-1GHz80dB

Micro wave

1GHz-10GHz80dB

Configuring different I / O interfaces results in different shielding effectiveness of the shielding box

Available broadband range :3010000 MHz, which can be applied to   current and future wireless communication technologies like GSM, WCDMA, WiMAX, LTE, GNSS, Bluetooth and Wi-Fi. This series of shielding box can unlimited use multi-band to measure mobile device, to maintain a stable and effective shielding performance in all bands, RS232 serial remote control, is the ideal choice of phone / tablet automation like RF test, EMI test, coupling test, etc.

TK-C2442A

180*230*100 mm

480*435*330 mm

TK-C1332A

260*200*70 mm

320*360*270 mm

TK-C1452A

340*290*100 mm

400*500*330 mm

TK-C1354A

270*290*240 mm

330*500*480 mm







Alternative I/O interface type for EMI filter

1.USB2.0USB2.0 standard interface, Rate Max.480Mbps Power supply port Max.5A

2.USB3.0 (Rate Max.3200Mbps, Power supply Max.3A Isolation500MHz)

3.RJ45(Support gigabit Ethernet 802.3AT(POE+) Max.DC50V 3A

4.DCDC-AC Max.AC70V  DC100V  5A

5.DB9Male headFemale headRate Max.4.5Mbps DC50V 3A(Power supply) /200mA(Signal

6.DB15/VGA(Male headFemale head) Rate Max.4.5Mbps DC50V 3A(Power supply) /200mA(Signal) PIN9Power supply, PIN5,6,7,8,10 Ground.(Three rows interface)

7.DB25(Male headFemale head) Rate Max.4.5Mbps  DC50V 3A(Power supply) /200mA(Signal)

8.DB37(Male headFemale head) Rate Max.4.5Mbps  DC50V 3A(Power supply) /200mA(Signal)

9.Other EMI interface likeHDMI 1080P, AC220V 10A, SMA, N, M CX, BNC, Fakra, Banana bin, waveguide tube, waveguide window, etc.
