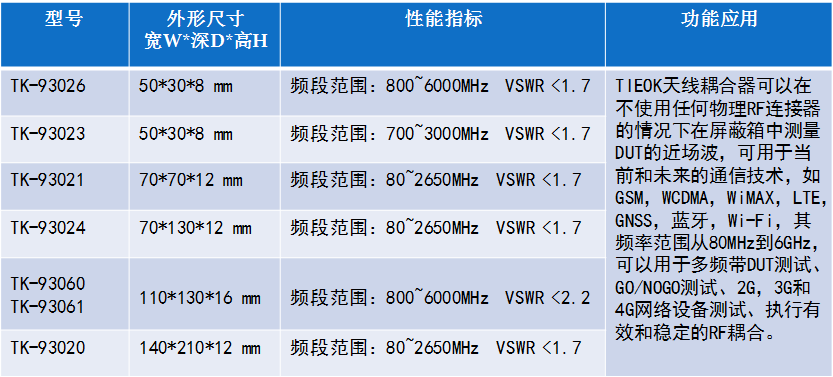

Model
Dimension
W*D*H
Performance index
Function application

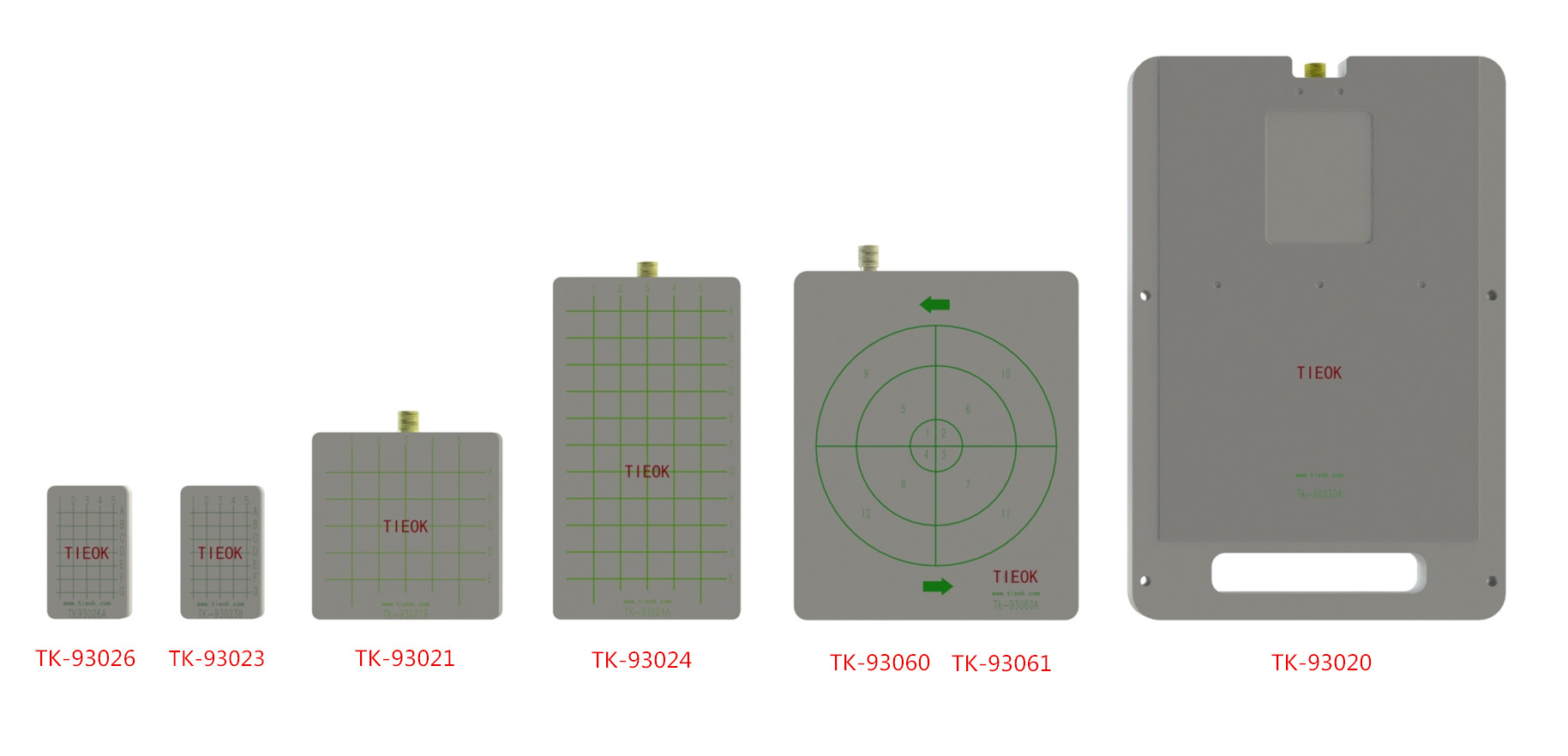

TK-93026
50*30*8 mm
Frequency range：800~6000MHz VSWR <1.7
TIEOK antenna coupler can measure the near-field wave of the DUT in a
shielding box without using any physical RF connector and can be used for
current and future communication technologies such as GSM, WCDMA, WiMAX, LTE,
GNSS, Bluetooth, Wi- Fi, with a frequency range from 80MHz to 6GHz, can be
used for multiband DUT testing, GO/NOGO testing, 2G, 3G, and 4G network
equipment testing, performing efficient and stable RF coupling.
TK-93023
50*30*8 mm
Frequency range：700~3000MHz VSWR <1.7
TK-93021
70*70*12 mm
Frequency range：80~2650MHz VSWR <1.7
TK-93024
70*130*12 mm
Frequency range：80~2650MHz VSWR <1.7
TK-93060
TK-93061
110*130*16 mm
Frequency range：800~6000MHz VSWR <2.2
TK-93020
140*210*12 mm
Frequency range：80~2650MHz VSWR <1.7
TK-1575
60*60*11 mm
Frequency range：1575±5MHz
VSWR <1.5
GPS dedicated coupling test antenna
TK-1561
60*60*11 mm
Frequency range：1561±5MHz
VSWR <1.5
Beidou dedicated coupling test antenna
|
||||||||||||||||||||||||||||||||
